Brake Pads Dimensions

Explore our complete catalog of precision-engineered brake pads for all major motorcycle brands. View detailed dimensions below or download the full PDF catalog.

Download PDF Catalog

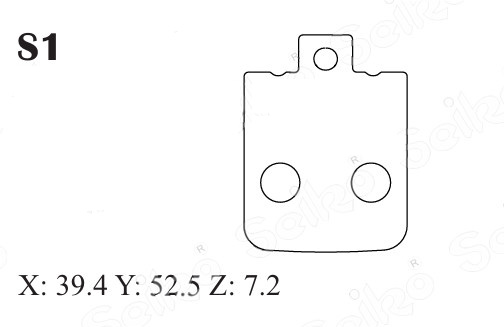

S1

X 39.4

Y 52.5

Z 7.2

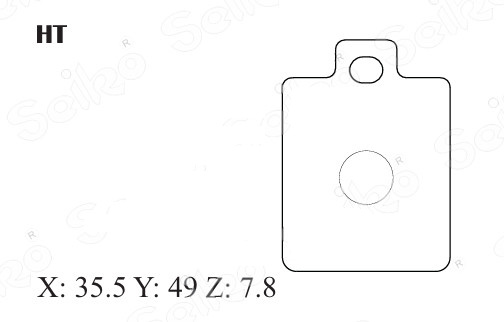

HT

X 35.5

Y 49.0

Z 7.8

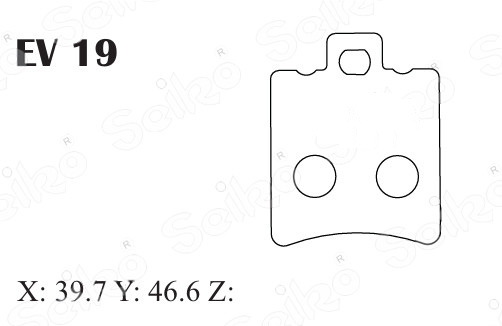

EV 19

X 39.7

Y 46.6

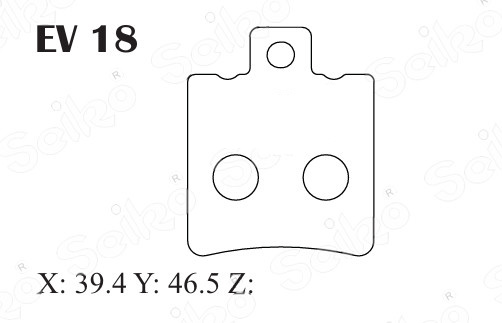

EV 18

X 39.4

Y 46.5

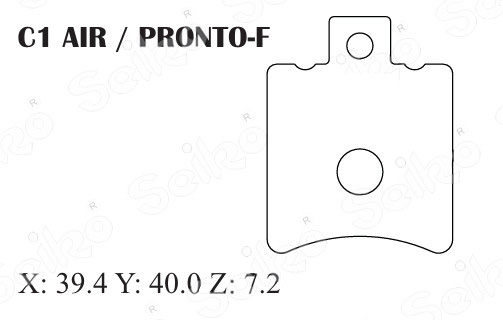

C1 AIR / PRONTO-F

X 39.4

Y 40.0

Z 7.2

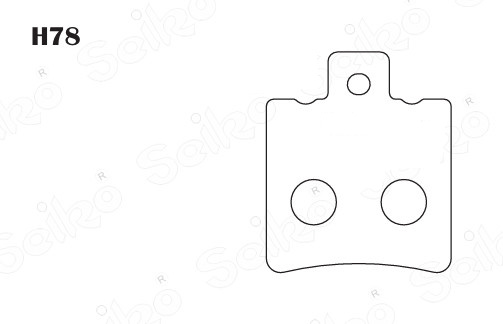

H78

Dimensions Not Specified

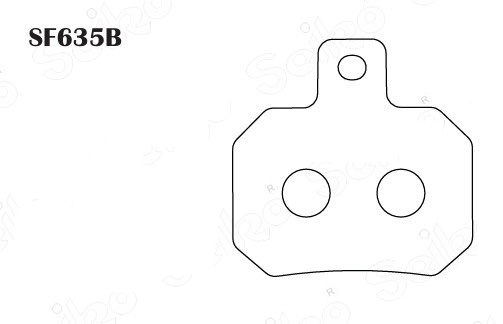

SF635B

Dimensions Not Specified

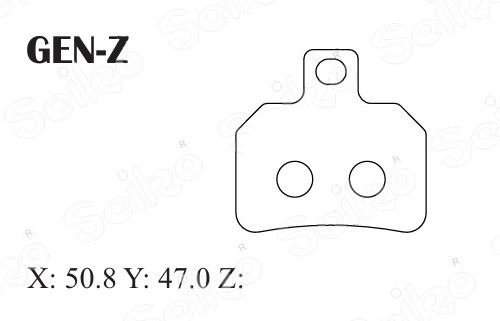

GEN-Z

X 50.8

Y 47.0

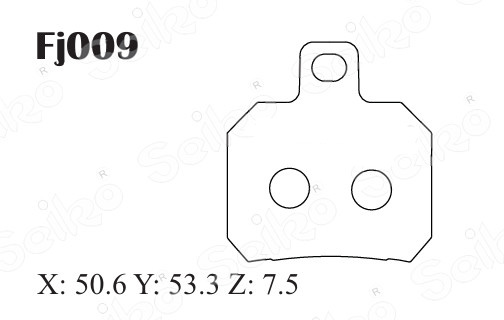

Fj009

X 50.6

Y 53.3

Z 7.5

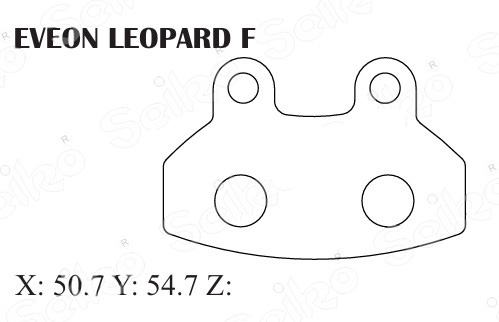

EVEON LEOPARD F

X 50.7

Y 54.7

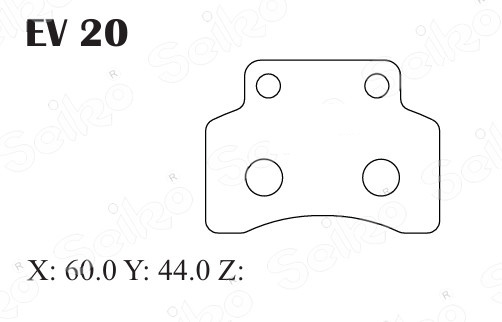

EV 20

X 60.0

Y 44.0

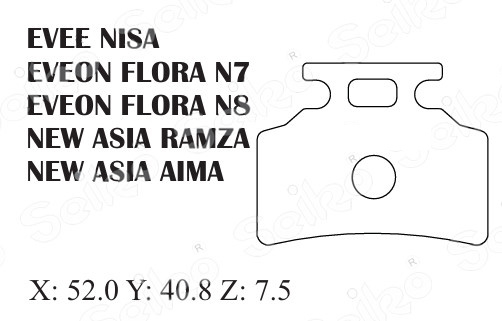

EVEE NISA / FLORA / NEW ASIA

X 52.0

Y 40.8

Z 7.5

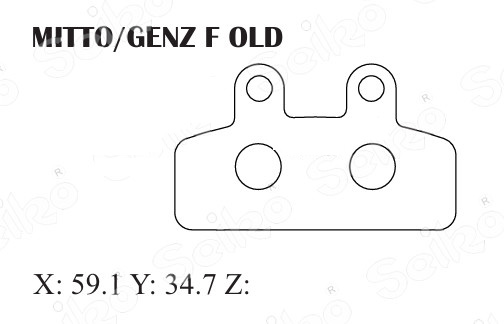

MITTO / GENZ F OLD

X 59.1

Y 34.7

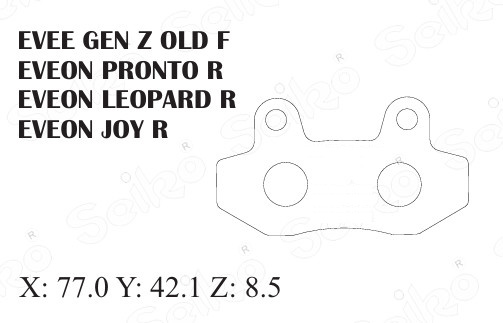

EVEE GEN Z OLD F / PRONTO R

X 77.0

Y 42.1

Z 8.5

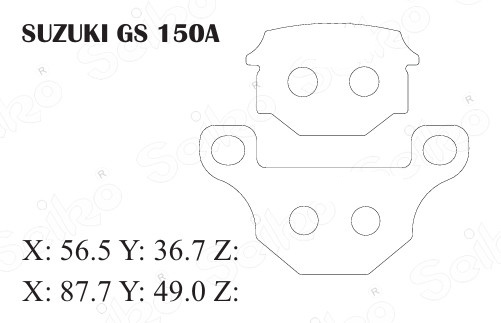

SUZUKI GS 150A

X 56.5

Y 36.7

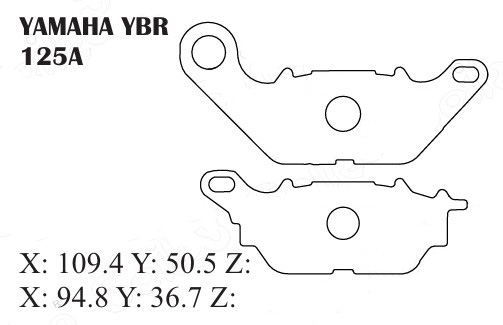

YAMAHA YBR 125A

X 109.4

Y 50.5

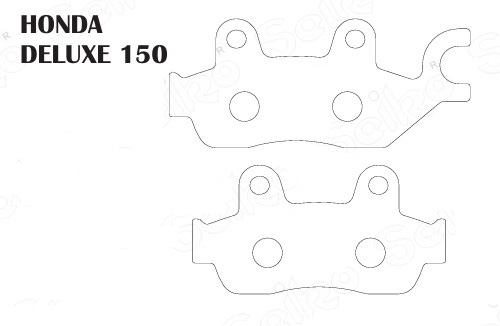

HONDA DELUXE 150

Dimensions Not Specified

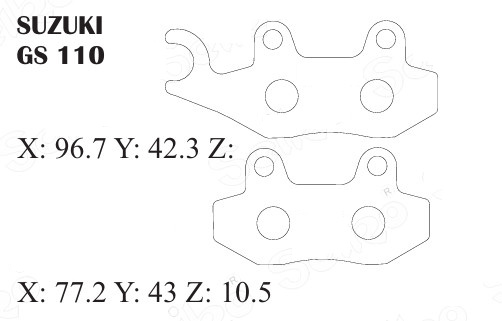

SUZUKI GS 110

X 96.7

Y 42.3

Z 10.5

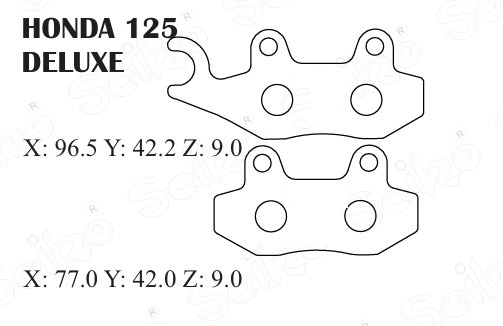

HONDA 125 DELUXE

X 96.5

Y 42.2

Z 9.0

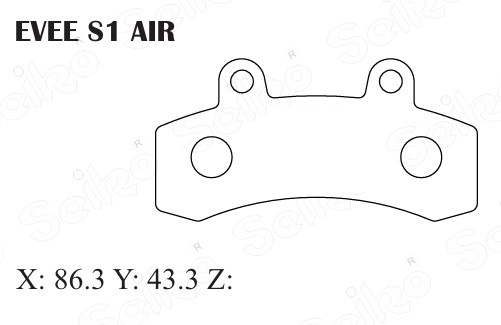

EVEE S1 AIR

X 86.3

Y 43.3

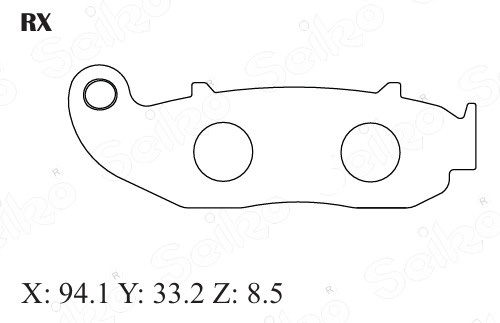

RX

X 94.1

Y 33.2

Z 8.5

Model A (Custom)

X 89.5

Y 48.5

Z 7.2

Model B (Custom)

X 71.0

Y 38.2

Z 7.2

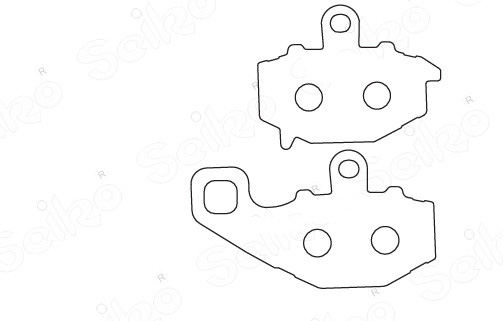

Model C (Custom)

X 102.43

Y 39.6

Z 10.2

Model D (Custom)

X 86.2

Y 39.6

Z 10.2
